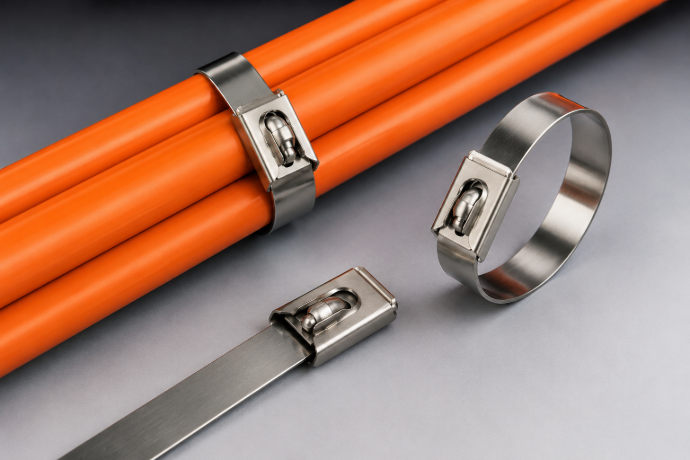

BAND-IT Ball-LOK™ Ties are quick and easy to apply offering a versatile solution for heavy duty applications. Ball-Lok ties come with a heavy-duty buckle that offers superior corrosive, abrasive and UV resistance performance that makes this product perfect for harsh duty or marine environments.
- Four widths – 0.18” (4.6mm), 0.31” (7.8mm), 0.47” (12mm), and 0.59” (15mm) for applications ranging from identification tagging to bundling large cables.
- Self locking design allows fast installation even hand tightening.
- Installation by hand or with tools to assure uniform tension and clean tail cut-off for safe handling.
- Available in Type 304 and Type 316 stainless steels to provide good to excellent corrosion resistance in a wide variety of environments.
- Available in Coated and Uncoated variants.

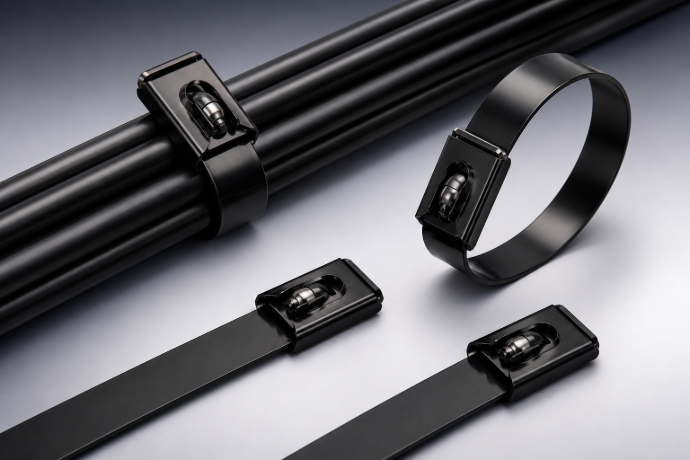

- Coated Ball-Lokt™ Ties are fully coated with black epoxy.

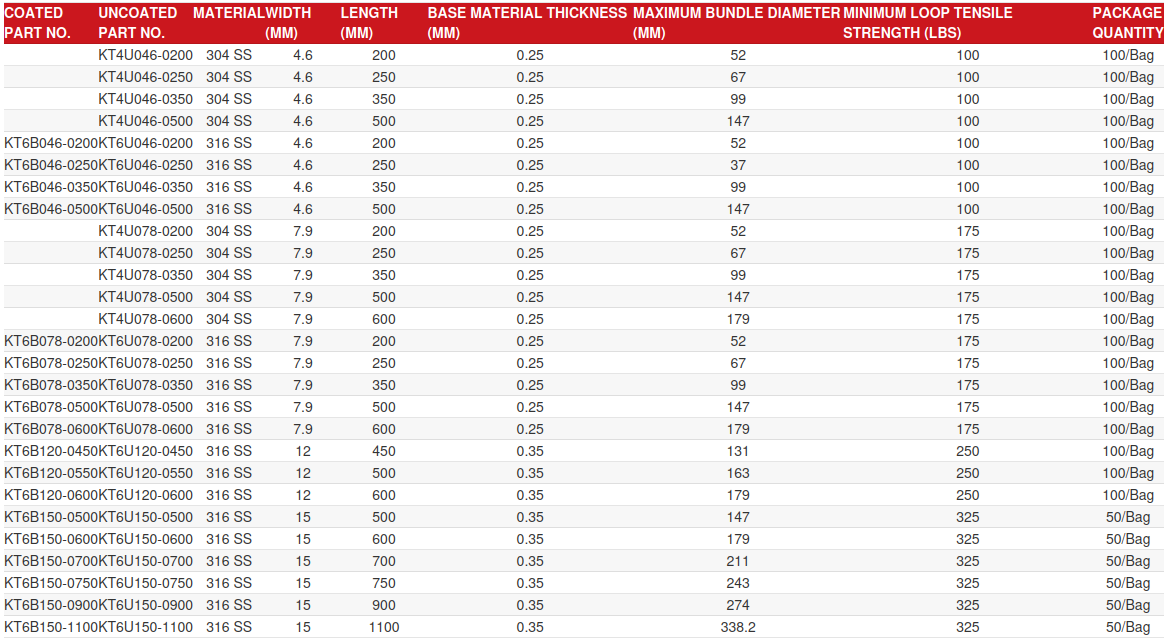

BALL-LOKT™ TIES PRODUCT SPECIFICATIONS
| Coated Part No. |
Uncoated Part No. |
Material | Width (mm) | Length (mm) | Base Material Thickness (mm) | Maximum Bundle Diameter (mm) | Minimum Loop Tensile Strength (Lbs) | Package Quantity |
|---|---|---|---|---|---|---|---|---|
| KT4U046-0200 | 304 SS | 4.6 | 200 | 0.25 | 52 | 100 | 100/Bag | |
| KT4U046-0250 | 304 SS | 4.6 | 250 | 0.25 | 67 | 100 | 100/Bag | |
| KT4U046-0350 | 304 SS | 4.6 | 350 | 0.25 | 99 | 100 | 100/Bag | |
| KT4U046-0500 | 304 SS | 4.6 | 500 | 0.25 | 147 | 100 | 100/Bag | |
| KT6B046-0200 | KT6U046-0200 | 316 SS | 4.6 | 200 | 0.25 | 52 | 100 | 100/Bag |
| KT6B046-0250 | KT6U046-0250 | 316 SS | 4.6 | 250 | 0.25 | 37 | 100 | 100/Bag |
| KT6B046-0350 | KT6U046-0350 | 316 SS | 4.6 | 350 | 0.25 | 99 | 100 | 100/Bag |
| KT6B046-0500 | KT6U046-0500 | 316 SS | 4.6 | 500 | 0.25 | 147 | 100 | 100/Bag |
| KT4U078-0200 | 304 SS | 7.9 | 200 | 0.25 | 52 | 175 | 100/Bag | |
| KT4U078-0250 | 304 SS | 7.9 | 250 | 0.25 | 67 | 175 | 100/Bag | |
| KT4U078-0350 | 304 SS | 7.9 | 350 | 0.25 | 99 | 175 | 100/Bag | |
| KT4U078-0500 | 304 SS | 7.9 | 500 | 0.25 | 147 | 175 | 100/Bag | |
| KT4U078-0600 | 304 SS | 7.9 | 600 | 0.25 | 179 | 175 | 100/Bag | |
| KT6B078-0200 | KT6U078-0200 | 316 SS | 7.9 | 200 | 0.25 | 52 | 175 | 100/Bag |
| KT6B078-0250 | KT6U078-0250 | 316 SS | 7.9 | 250 | 0.25 | 67 | 175 | 100/Bag |
| KT6B078-0350 | KT6U078-0350 | 316 SS | 7.9 | 350 | 0.25 | 99 | 175 | 100/Bag |
| KT6B078-0500 | KT6U078-0500 | 316 SS | 7.9 | 500 | 0.25 | 147 | 175 | 100/Bag |
| KT6B078-0600 | KT6U078-0600 | 316 SS | 7.9 | 600 | 0.25 | 179 | 175 | 100/Bag |
| KT6B120-0450 | KT6U120-0450 | 316 SS | 12 | 450 | 0.35 | 131 | 250 | 100/Bag |
| KT6B120-0550 | KT6U120-0550 | 316 SS | 12 | 500 | 0.35 | 163 | 250 | 100/Bag |
| KT6B120-0600 | KT6U120-0600 | 316 SS | 12 | 600 | 0.35 | 179 | 250 | 100/Bag |
| KT6B150-0500 | KT6U150-0500 | 316 SS | 15 | 500 | 0.35 | 147 | 325 | 50/Bag |
| KT6B150-0600 | KT6U150-0600 | 316 SS | 15 | 600 | 0.35 | 179 | 325 | 50/Bag |
| KT6B150-0700 | KT6U150-0700 | 316 SS | 15 | 700 | 0.35 | 211 | 325 | 50/Bag |
| KT6B150-0750 | KT6U150-0750 | 316 SS | 15 | 750 | 0.35 | 243 | 325 | 50/Bag |
| KT6B150-0900 | KT6U150-0900 | 316 SS | 15 | 900 | 0.35 | 274 | 325 | 50/Bag |
| KT6B150-1100 | KT6U150-1100 | 316 SS | 15 | 1100 | 0.35 | 338.2 | 325 | 50/Bag |
